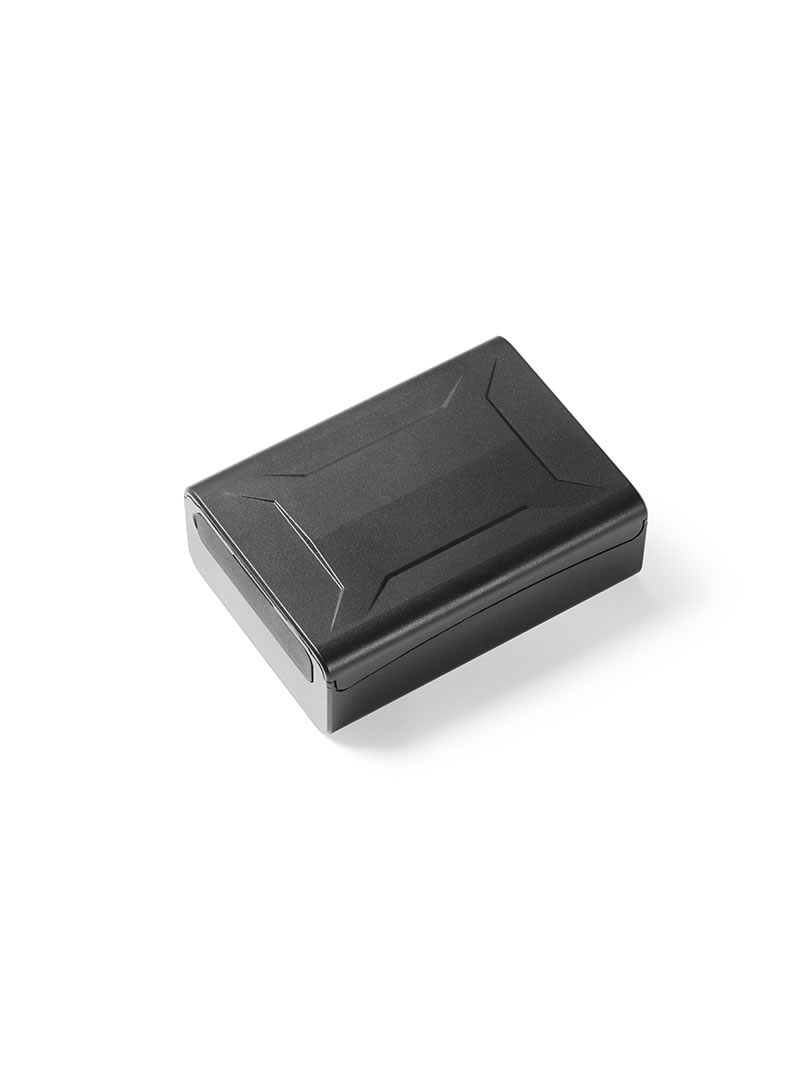

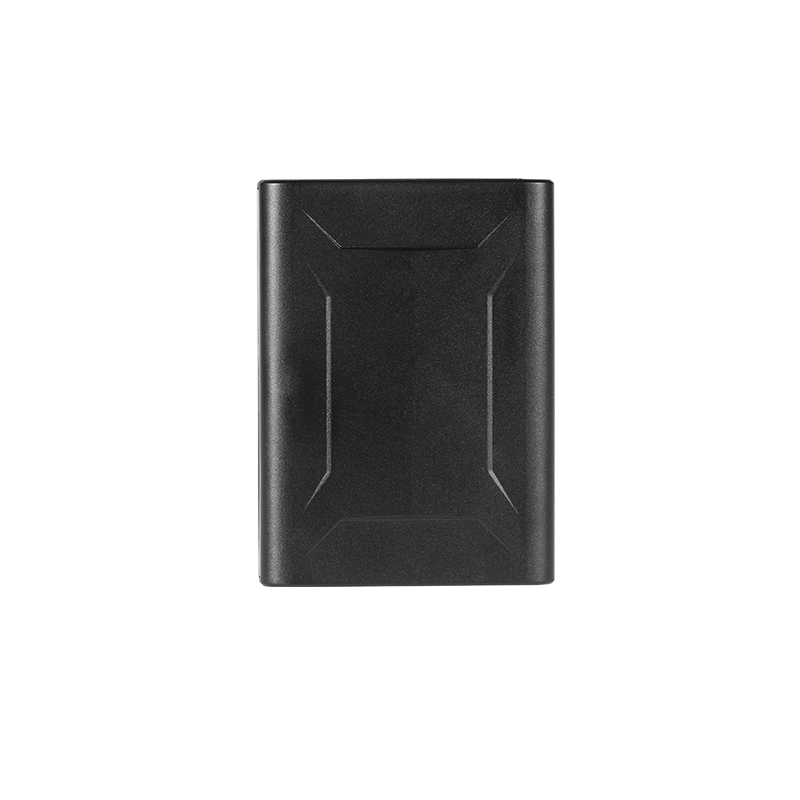

TBA01-2G/4G GPS Asset Tracker

The device is a high-capacity wireless charging device for vehicle tracking andvehicle SOS alarm.With strong magnetic, hidden installation, low powerconsumption, long standby time.

Product Features

2G/4G Communications network
2G/4G network communication, faster and more accurate positioning
Light Sensitive Anti-tamper

Built-in light-sensitive protection, it stays in standby and dormant state for a long time. Once it is detected that it has been removed, the alarm information will be sent back to the platform.
GNSS

GPS,GLONASS,GALILEO,BEIDOU,AGPS,QZSS,SBAS

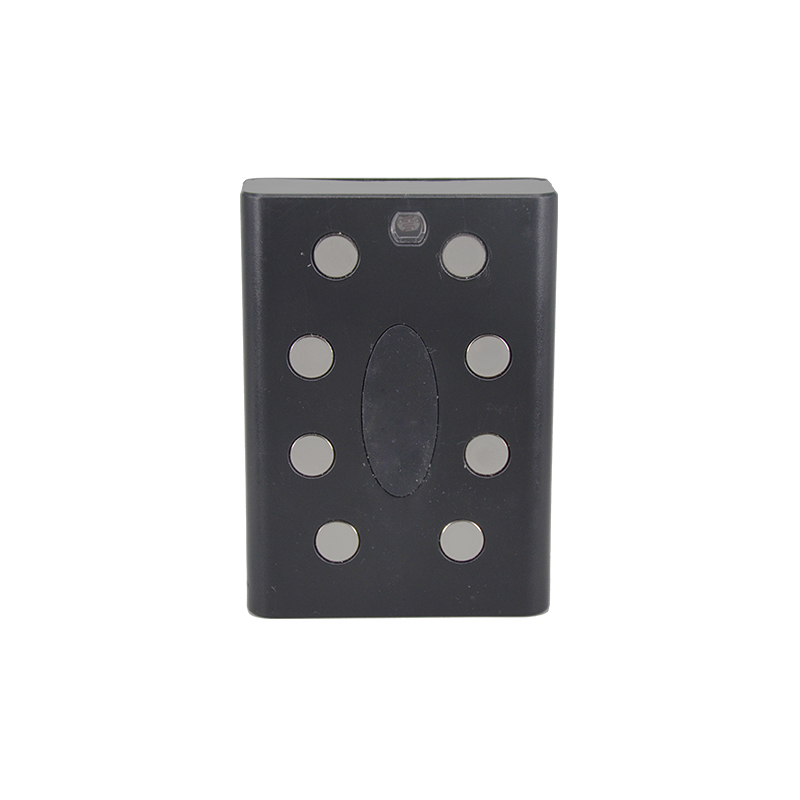

Strong Magnetic
A strong magnetic asset locator features robust magnets for easy installation and secure attachment to metal surfaces, ensuring a firm hold and reliable positioning

Core Functions

Function Function Description
Timing tracking According to the set interval time, and when the moving distance is greater than 50 meters compared with the previous positioning information packet, the positioning information such as longitude and latitude will be returned.
Light alarm When the light perception of the terminal changes from not seeing light to seeing light, the terminal reports a light sensing alarm. After the power-saving timing mode sleeps, the light-sensing wake-up terminal will upload a light-sensing alarm.
Speeding alarm The platform sets the maximum speed limit value. When the GPS speed is greater than the set value, an speeding alarm will be reported.
Blind zone supplementary pass function The terminal is positioned and offline, and the data is stored, up to 600 pieces. Upload when there is a normal signal.
EPO auxiliary positioning function The terminal supports EPO assisted positioning function to enhance the positioning effect.
Inflection point supplementary pass When the direction angle of the device changes greater than a certain angle, a piece of position data is uploaded immediately to optimize the trajectory.
Remote upgrade The upgrade housekeeper remotely upgrades.
Timed wake up The terminal sets the timed wake-up start and the return time interval. After the terminal enters sleep, it starts timing and wakes up according to the set return time.

Specifications

No. Items Specifications
1 Operating Voltage DC 5V
2 Working Current Sports mode 46mA@4V
Quiescent current 6.5mA@4V
Power saving mode 75uA@4V
3 Standard sizes L86*W62*H30MM
4 Targeting GPS and base station positioning
5 Positioning Accuracy <10 m CEP
6 Communications Network 2G/4G
7 Communications method TCP
8 Range of working temperature -25℃ ~ +75℃
9 Storage temperature range -40℃ ~ +85℃
10 Battery capacity 7500mAh
