| Compression: |
H.264, supports 4CH 720P AHD input / 4CH analog standard definition camera input / 2CH HD + 2CH SD mixed input |
| Video Output: |
2CH video output (1CH CVBS video, optional VGA output) |
| File System: |
Exclusive pre-allocated file system protects data integrity, prevents SD card fragmentation, and ensures stable and complete data |
| Voltage: |
8-36V wide voltage with low power consumption |
| UPS Technology: |
Unique UPS technology ensures recording integrity during power failure, maintaining functionality for 8-10 seconds |
| Storage: |
HDD + SD card storage (supports 2.5” HDD, max 128G SD card), protected from shock and dust; supports USB port data backup and device updates |
| USB Interfaces: |
Supports 2 USB interfaces for data backup and device upgrades |
| Alarm Inputs/Outputs: |
Supports 6CH alarm input (1CH RS485 + 1CH RS232) and 2CH independent alarm output |
| HDD Heating: |
Supports HDD heating function, enabling operation in harsh environments |
| GPS/BDS/G-Sensor: |
Supports GPS/BDS/G-Sensor extension modules |
| Real-Time Monitoring: |
Real-time monitoring through 3G/4G |
| WIFI Module: |
Supports WIFI module for automatic data download |
| Additional Features: |
Supports broadcast, intercom, text messaging; can add oil sensor, temperature sensor, POS, LED advertisement panel |
| Remote Configuration: |
Supports SMS remote configuration/control of the device |
| OTA Upgrade: |
Supports OTA (On-The-Air) automatic device upgrade, making maintenance more convenient |
| Voice Call: |
Supports voice call function |
| Remote Monitoring: |
Supports IOS/Android phone remote monitoring |
| Installation: |

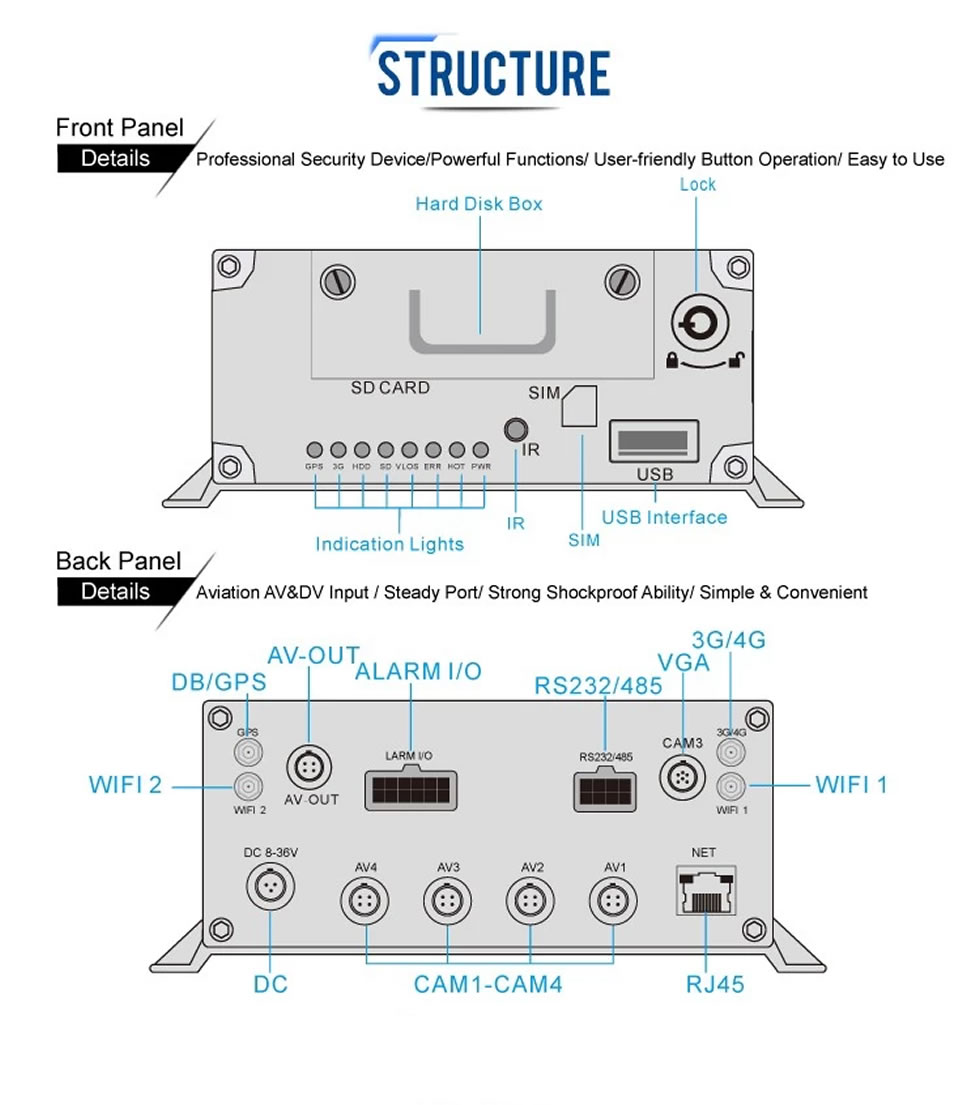

High-level aviation interface for easy installation, better shockproofing, and increased stability |
